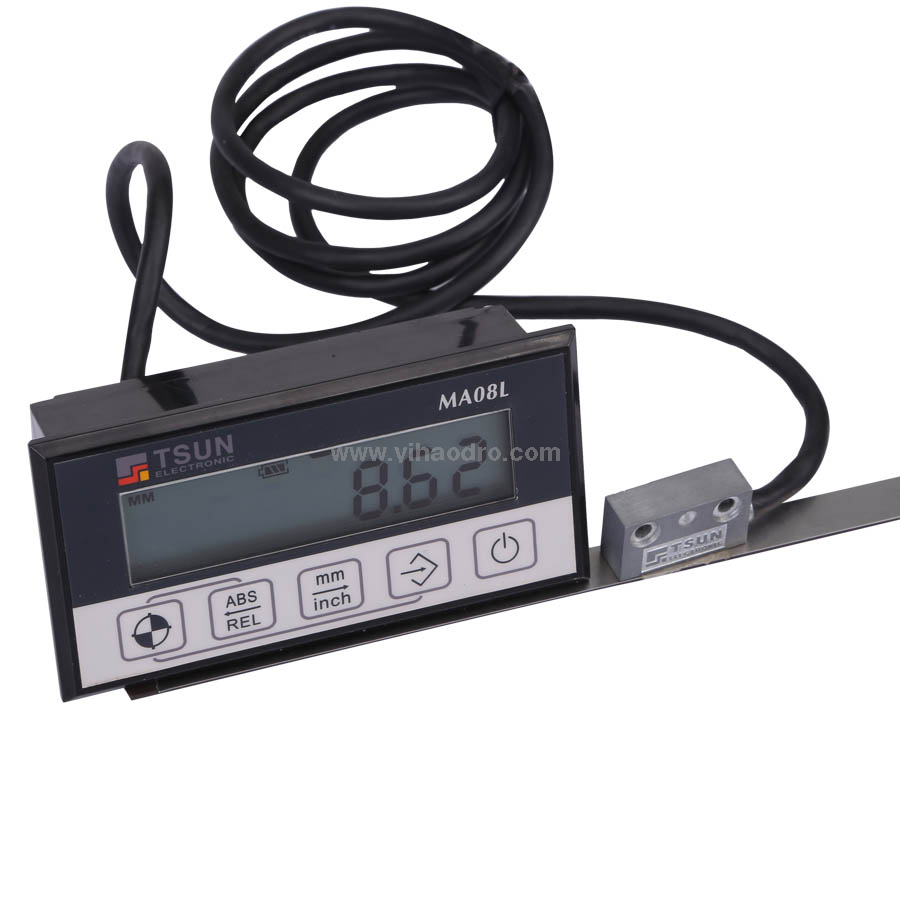

Magnetic Displacement Measuring Instrument MA08L
Display resolution :10μm，50μm，100μm，1mm
Repeated measurement accuracy :MAX x 10μm
Multifunction menu ,are free to set parameters
High contrast ,large screen LCD display
Length / angle measurement model
Absolute /relative measurement model
Metric /inch swappable
Buttons /menu can be locked
LCD backlight ,clearly marked
Non-contact measurement ,no wear and tear
High level of protection ,oil resistance to dust
The structure and beautiful ,modest
Convenient embedded battery ,replace the battery
Cassette cast ,installation is convenient
Features | Technical parameters | Notes |
Measurement parameters | |
System accuracy | ±（0.03+0.01*L）mm Unit :m |
Measurement /display range | -1999999∽1999999 |
Movement speed | Max 5m/s |
Structural parameters | |
Housing material /color | ABS+PC /black/white |
Sensor cable length | 1m Customized on-demand |
Weight | About 0.35KG |
Others parameters | |
Power supply | Section 2-AA l.5v 5th battery |
Applied magnetic ruler | MS 500/5mm |
Backlight color | white |
Working temperature range | -10℃～+60℃ |
Storage temperature range | -30℃～+80℃ |
Protection rating | IP54 front panel an ip67 sensor |
Seismic performance | 10g (5～～100HZ) DIN IEC68-2-6 |
Impact resistance | 30g /15ms DIN IEC68-2-27 |
(Installation and commissioning. See product specifications)
;)
;)
