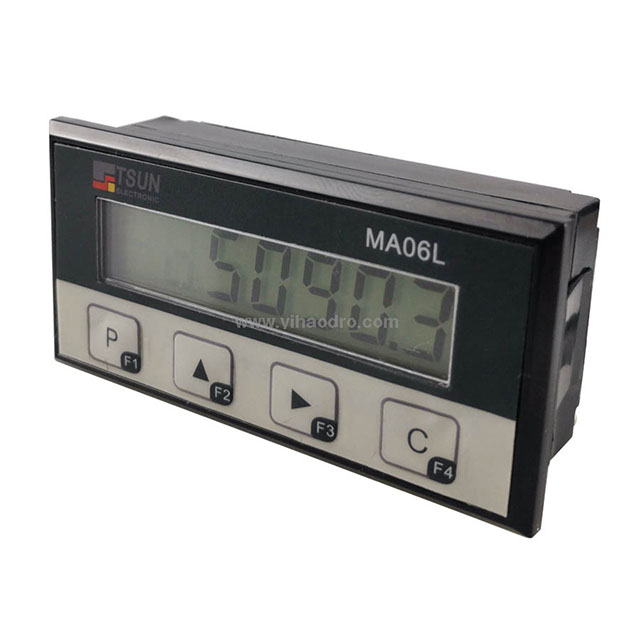

Magnetic Displacement Measuring Instrument MA06L
l Display resolution :10μm，50μm，100μm，1mm
l Repeated measurement accuracy :MAX x 10μm
l Multifunction menu ,are free to set parameters
l Highlight digital display
l Key lock /menu
l Metric /inch swappable
l Length /Angle measurement model
l Absolute / relative measurement model
l Non-contact measurement ,no wear and tear
l High protection level ,anti-oil ,anti-dust
l Convenient embedded battery
l Cassette cast ,installation is convenient
Features | Technical parameters | Notes |
Measurement parameters | ||
System accuracy | ±（0.03+0.01*L）mm Unit :m | |
Measurement /display range | -9999.9∽9999.9 | |
Movement speed | Max 5m/s | |
Structural parameters | ||
Housing material /color | ABS+PC /grey | |
Sensor cable length | 1m Customized on-demand | |
Weight | About 0.35KG | |
Others parameters | ||
Backup Power supply | Section 2-AA l.5v 5th battery | |
Power supply | 9～24v DC 10MA | |
Applied magnetic ruler | MS 500/5MM | |
Working temperature range | -10℃～+60℃ | |
Storage temperature range | -30℃～+80℃ | |
Protection rating | IP54 front panel an ip67 sensor | |
Seismic performance | 10g (5～100HZ) DIN IEC68-2-6 | |
Impact resistance | 30g /15ms DIN IEC68-2-27 | |
