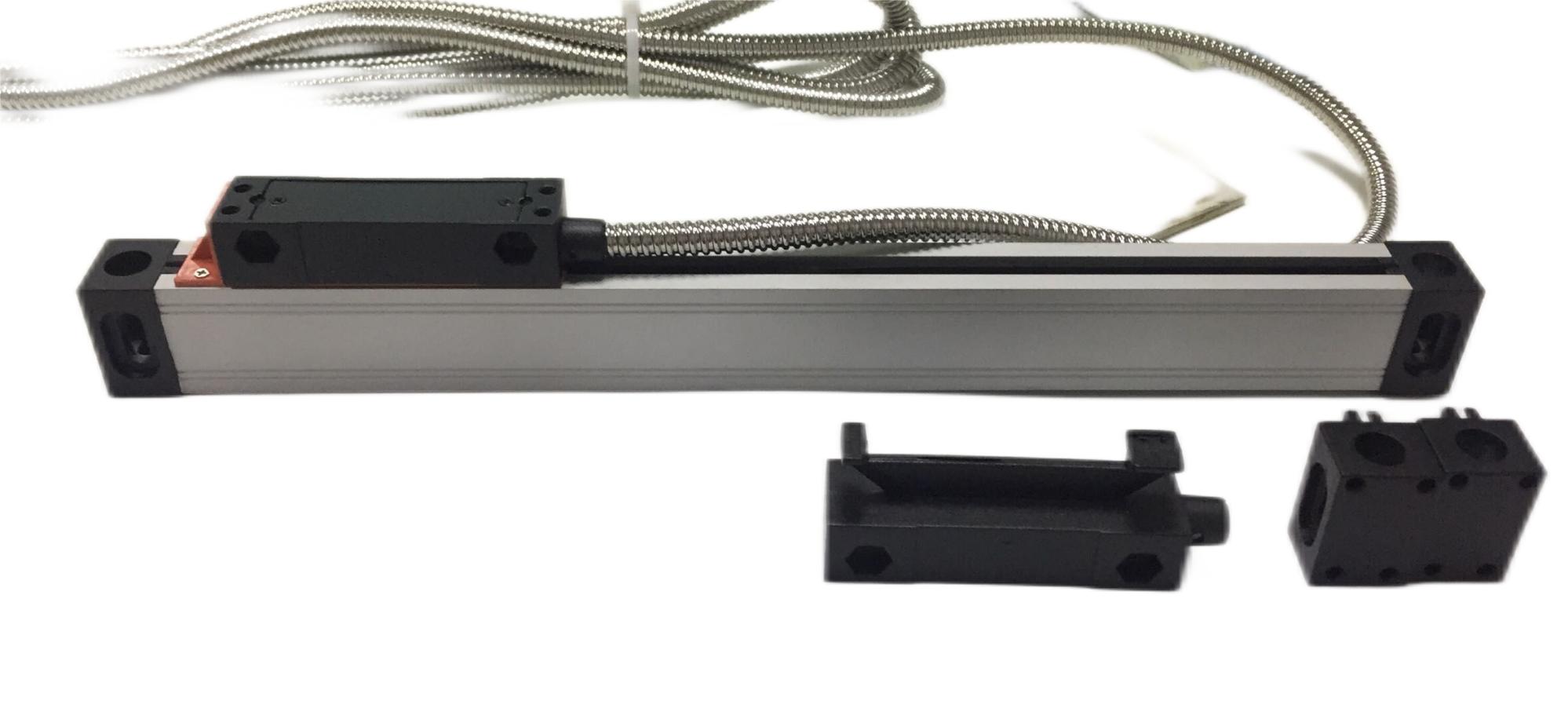

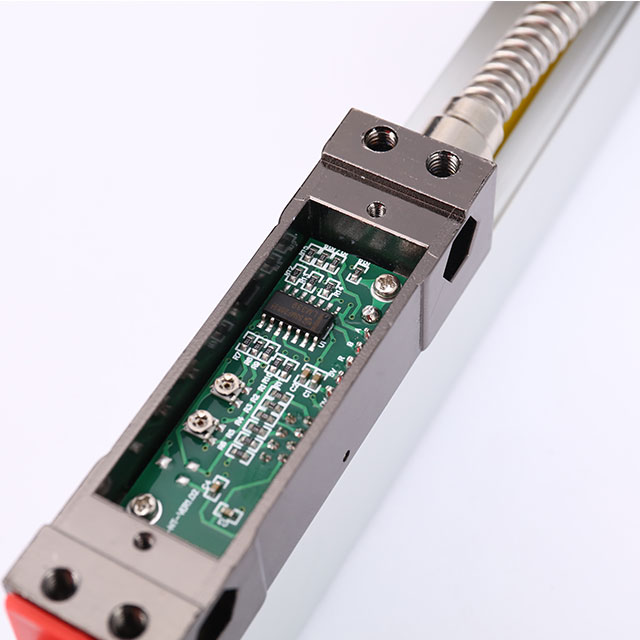

Yihehua linear scale SK10F Series

Model SK10F: the series of small size linear scale

Resolution: 5um, 1um, 0.5um,0.1um

Model SK10: the series of regular linear scale

Resolution: 10um, 5um, 1um, 0.5um,0.1um

Model SK20: The series of Large-linear scale

Resolution: 5um, 1um, 0.5um,0.1um

Key Features:

Resolution:0.5/1/5/10um

Accuracy: ±3/±5/±10µm(20°C/68°F)

Bench marks：The grating period: 20um optical linear scale.

Grating system: The trans-missive and infrared optical measuring system, the infrared wave length is 880nm.

Reading head sliding system: vertical or 45°five precision bearing system

Linear Scale SK10F Series Specifications:

Linear Scale SK10F Signal Wiring Diagram

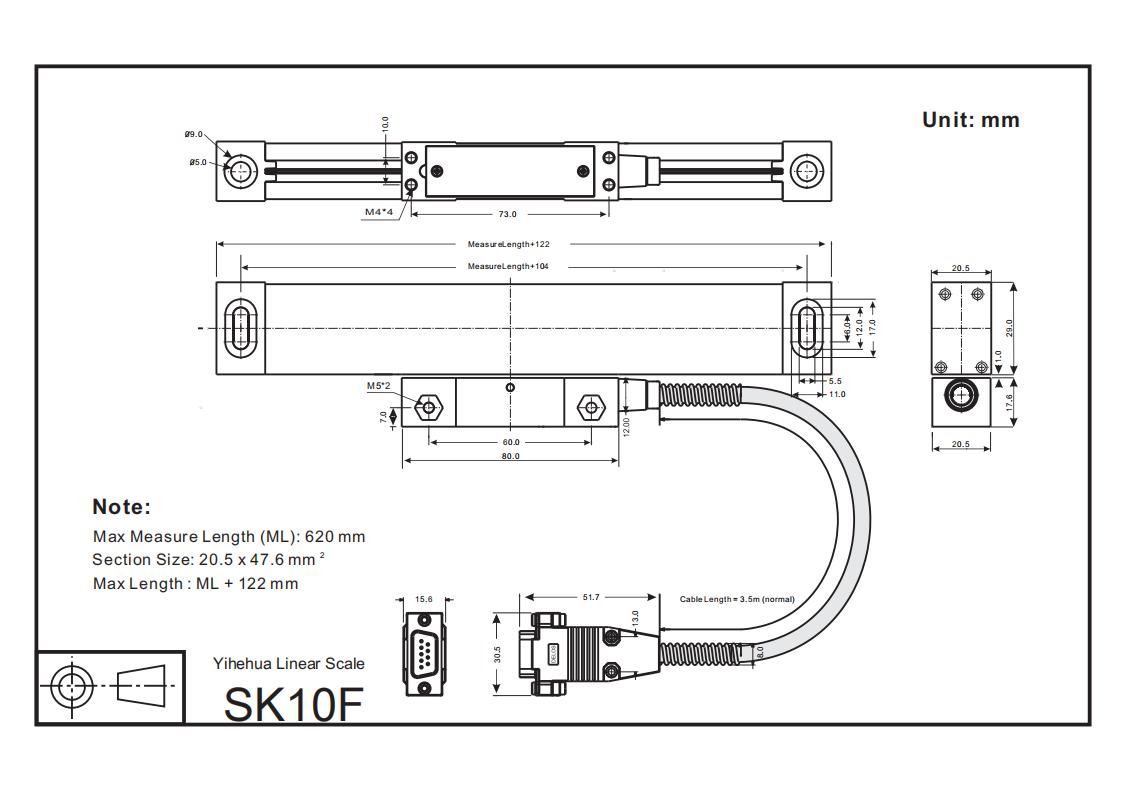

Linear scale SK10F Drawing:

Customized travel length is accepted for orders!
