Yihehua Linear Scale SK10

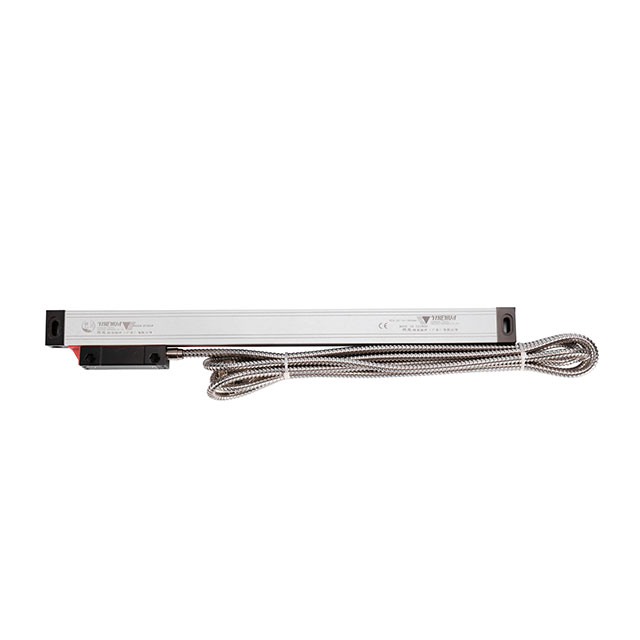

Yihehua linear scale SK10 Series

Model SK10: the series of regular linear scale

Resolution: 10um, 5um, 1um, 0.5um,0.1um

Model 10F: the series of small size linear scale

Resolution: 5um, 1um, 0.5um,0.1um

Model SK20: The series of Large-linear scale

Resolution: 5um, 1um, 0.5um,0.1um

Key Features:

Resolution:0.5/1/5/10um

Accuracy: ±3/±5/±10µm(20°C/68°F)

Bench marks：The grating period: 20um optical linear scale.

Grating system: The trans-missive and infrared optical measuring system, the infrared wave length is 880nm.

Reading head sliding system: vertical or 45°five precision bearing system

Linear Scale SK10 Series Specifications:

Model	SK10F	SK10	SK20
Travel length(mm)	50-500	100-1200	1000-3000
Sectional Size(mm)	20X29	21.5X33.5	29X49
Accuracy	±3/±5/±10µm(20°C/68°F)
Resolution(um)	0.1/0.5/1/5/10
Reference Signal	Every 50mm per length specification
Seal protection	IP55
working speed	(resolution)>=5um: >=60m/min <=1um: >=20m/min
Output signal	TTL/EIA-422-A
Operating temperature	0°-50°
Storage temperature	-20°--80°
Humidity	100% not condensed
Voltage	5V/12V/24V/36V

Linear Scale SK10 Signal Wiring Diagram

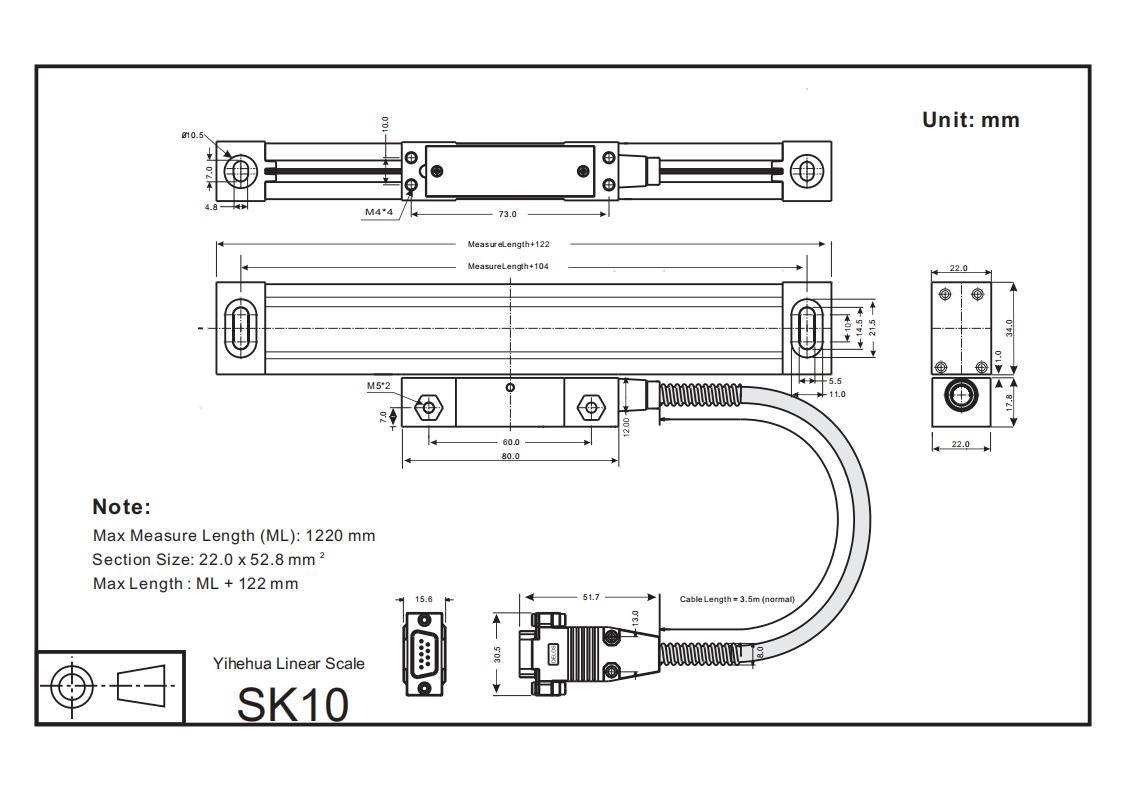

Linear scale SK10 Drawing:

Yihehua Linear Scale SK10(图1)

Customized travel length is accepted for orders!
