New updated YH800 LCD DRO

Features:

• Languages available in English, German, Polish, Hungarian, Russian, Ukrainian, Simplified Chinese, Traditional Chinese, Thai, Italian, Portuguese,Greek…; More to come!
• Multiple background colors
• 7 inches true color LCD display with die-casting casing.
• Preposition displaying reminding.
• Built-in type operation manual.
• 34-bit core chip 64M running memory, high integration.
• Strong Anti-interference ability.
• Display tool’s current position and drawing-preview.
• Touch probe supported to measure the workpiece.
• Covered by a 2-year warranty.

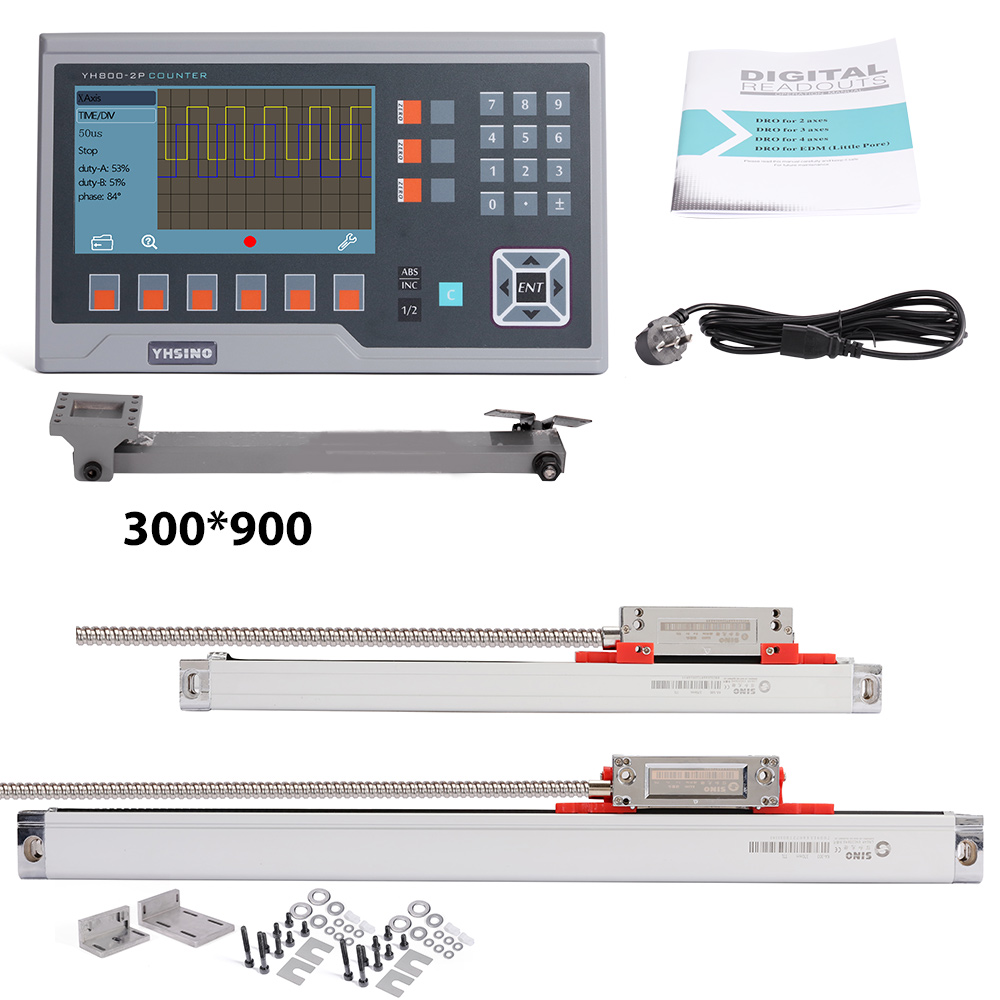

BOTH OUR GLASS SCALE AND MAGNETIC SCALE ARE COMPATIBLE WITH OUR DROs.

Please email us for the YH800 LCD DRO user manual!if you would like to read it before placing your order.

LCD DRO does a better performance than traditional led digital displays.

• YIHAO YH800 LCD DRO available in 2 axis,3 axis,4 axis,5 axis
• Multiple background colors
• Languages available in English, German, Polish, Hungarian, Russian, Ukrainian, Simplified Chinese, Traditional Chinese, Thai, Italian, Portuguese,Greek…; More to come!
• Power Dissipation: 15W
• Voltage Range: AC80V-260V / 50HZ-60HZ
• Operating Keypad: Mechanical Keypad
• Input Signal:5V TTL or 5V RS422
• Input Frequency: ≤4MHZ
• Resolution Supported For Linear Encoder: 0.1μm、0.2μm、0.5μm、1μm、2μm、2.5μm、5μm、10μm
• Resolution Supported For Rotary Encoder: ＜1000000 PPR

YH800 LCD DRO FUNCTIONS:

• Zeroing, Data Recovery
• Preset value
• Metric and Imperial switch
• Power-off memory
• Encoder selection(Linear or Rotary)
• Linear Compensation & Non-linear compensation
• Counting Direction Setting
• ABS/INC Coordinate
• 200 sets of SDM Coordinates
• REF function
• Centering / 1/2
• PLD
• PCD
• Smooth R
• Simple R
• Radius and Diameter Conversion
• Axis Summing
• Taper Measuring
• 16 Sets of Tool Offset
• Preposition Displaying Reminding.
• FeedRate
• Linear Measuring Basing Rotary Encoder

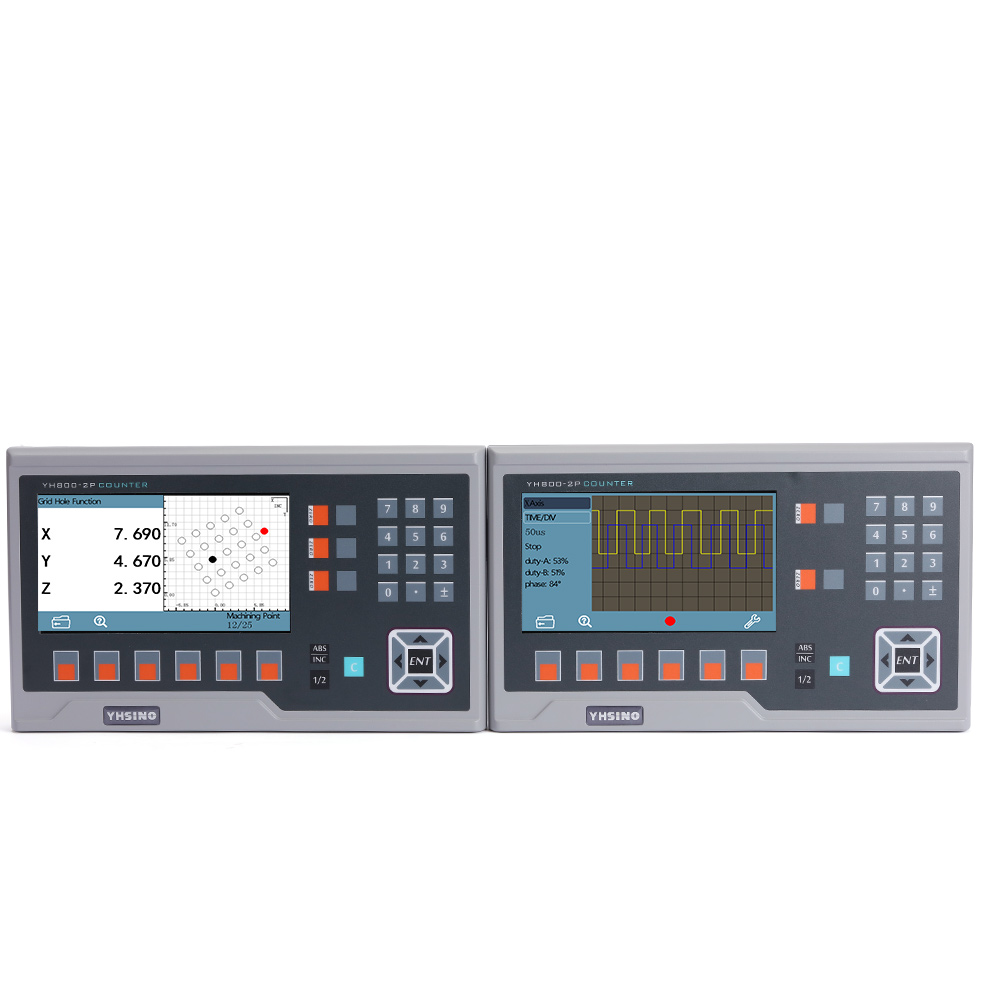

• Distance to Go, Oscilloscope Function
• EDM Function (Optional, Pre-Order only)
• RS232 Interface (Optional, Pre-Order only)
• Rotation Speed Measuring (Optional, Pre-Order only)
• 3D Touch Probe(Circle Measuring, Distance Measuring Basing Projection, Intersection Measuring of Two Lines) [Optional, Pre-Order only]

WHY YIHAO?

We have a strong technical innovation and developing team supported by a group of well-experienced software and hardware engineers, all of our production staff possess years of experience in this field. This makes us continually provide always techniques advanced, durable products, and reliable solutions to our partners.
Currently, our company builds a thorough system of techniques innovation, parts supply chain, manufacturing, service, and quality control. We will always adhere to our company philosophy-basing on innovation, focusing on details, delivering reliability, servicing the clients.
We are not only the manufacturer of digital readout and linear scale systems but also a technology innovation-driven company including developing, designing, manufacturing and service together.

WHY YH800 LCD DRO?

YH800 LCD DRO simply wins customers’ good feedback from all over the world, as it gives convenience to machining, the dynamic zoom is so friendly to the machinists,it is more readable than traditional LED DROs, it is very good while operating in the dark environment, and it can also be enabled to dark mode to protect machinist’s eyes.
