Yihao ATP100 3D Touch Probe
Yihao ATP100 3D Touch Probe Technical Parameters:

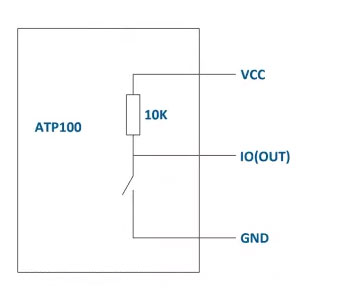

Connection:5mm diameters headset plug
Red Wire:5V-24V
White Wire: NPN Open
Black Wire:0V
LED Light:
-Green-IO output high-level signal
-Red-Touch occurs, IO output low-level signal
Unidirectional Repeatability:0.01mm
Ball diamater:2.0±0.003mm
Stylus Overtravel: XY±15°，Z+3mm
Wire length:2M
Touch Probe ATP 100 by Yihao Technical parameters :
Connection: 5mm diameter headset plus.
Red wire:5-24V.
White wire: NPN open
Black Wire:0V
LED light: Green-IO output high-level signal
Red-touch occurs, IO output low-level signal
Unidirectional Repeatability:0.01mm
Ball Diamater:2.0±0.003mm
Stylus overtravel: XY±15°， Z+3mm
Wire length:2 meters
We have a strong technical innovation and developing team supported by a group of well-experienced software and hardware engineers.
All of our production staff possess years of experience in this field. This makes us continually provide always techniques advanced, durable products, and reliable solutions to our partners.
Currently, our company builds a thorough system of techniques innovation, parts supply chain, manufacturing, service, and quality control. We will always adhere to our company philosophy-basing on innovation, focusing on details, delivering reliability, servicing the clients.
Soldering a hardball to the end of a shaft is a common type of probe, this was ideal for measuring a whole range of flat faces, cylindrical or spherical surfaces. These probes were physically held against the workpiece with the position in space being read from a 3-axis digital readout (DRO) or, in more advanced systems, being logged into a computer by means of a footswitch or similar device. Measurements taken by this contact method were often unreliable as machines were moved by hand and each machine operator applied different amounts of pressure on the probe or adopted differing techniques for the measurement, with ATP100 touch probe, coordinates measurements become easier.
Weight | 2 kg |
