ALSGS ALB-310SX Horizontal Type Power Feed For Bench Mills

*Power Feed is a very good add-on for milling machines to improve our machining efficiency, hence we stock the very good brand ALSGS power feed for our customers’ choice.*

• The ALB-310Sx is Horizontal Type Power Feed.
• Max Torque – 450in-ib
• Fits Many Bench Type Mills, will Also Fit Many Other Similar Type Models with a 17mm leadscrew
• Variable Speed Control for Speed Adjustment On The Fly
• Rapid Traverse Button
• Includes Table Stops With Switch For Safety

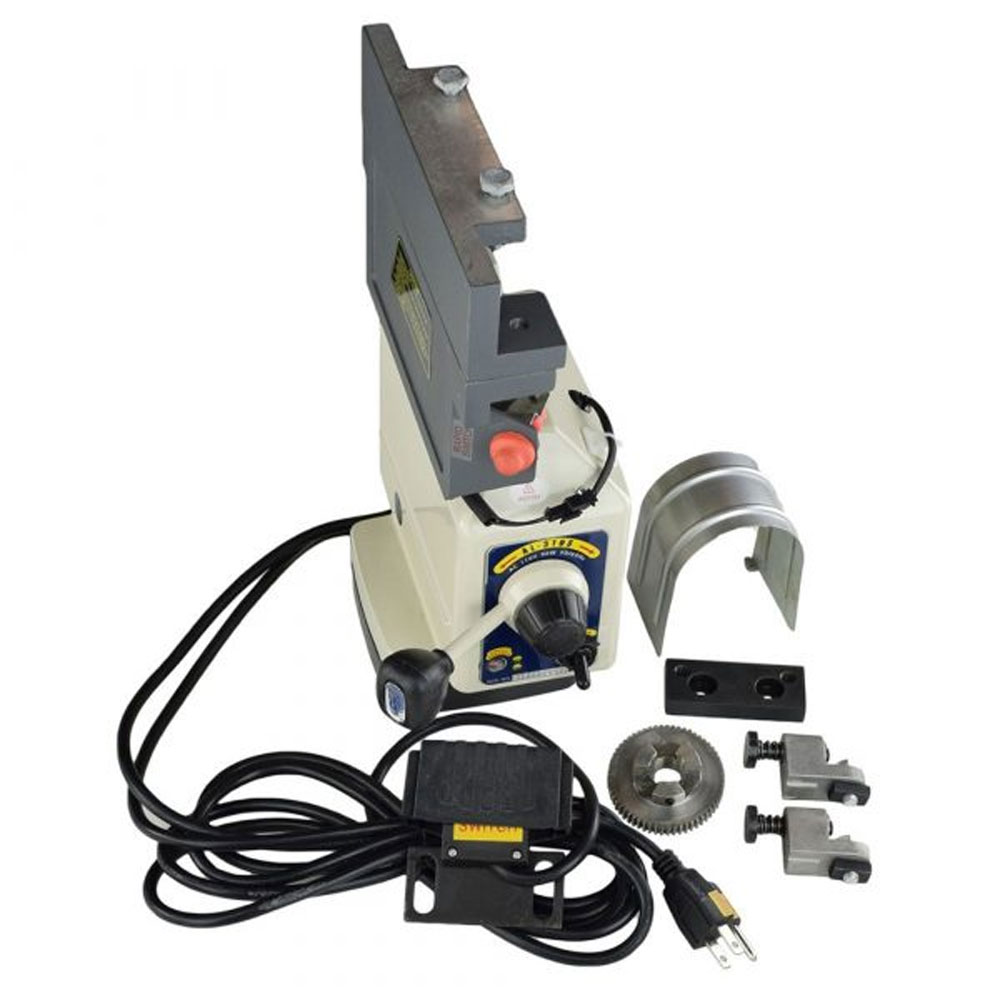

• Includes Everything Needed to Mount on Machines
• One-Year Warranty

Mill Drill Power Feed ALB-310SX IS A Horizontal Type, it Is Mainly For Milling Drilling Machines or Bech Mills
Voltage – 110V by default, 220V-240V optional.
Power Cord – US cord by default; UK, EU, optional; We ship the correct cord according to your ship-to country.
Max Torque – 450in-ib
Weight – 7.20 KGS

ALSGS power feed beats ALIGN power feed on price, we have sold the two brands to our customers, they both enjoy a good reputation.

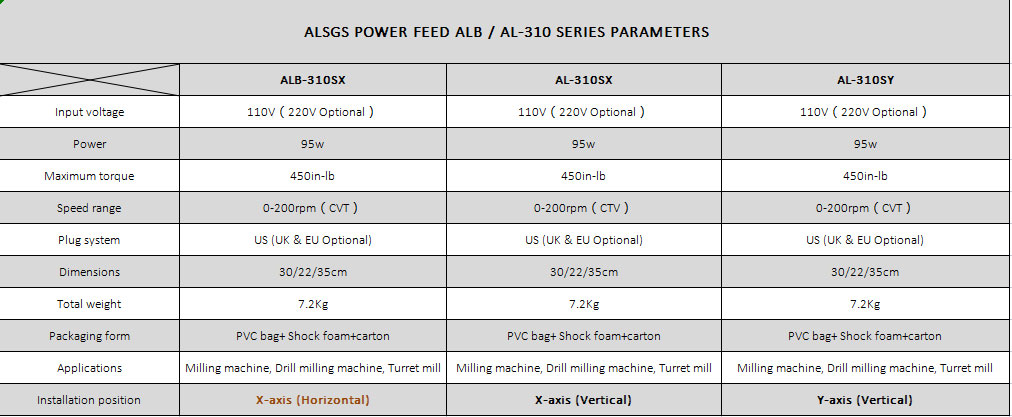

The differences between ALB-310SX、AL-310SX、AL-310SY

The difference between AL-310S、AL-410S、AL-510S ？
The number in the model represents the power, 310 is the smallest, 410 is slightly larger and 510 is the largest.

The difference between ALB-310SX、AL-310SX、AL-310SY、 ？
The last letter of the model represents the different axes installed on the machine, the ALB is a horizontal type mill drill power feed, it is suitable for most of the milling&drilling machines e.g. RongFu mill. While AL-310SX, AL-310SY are vertical types.

Are the installation dimensions of AL-310SX, AL-410SX, and AL-510SX the same?
Yes, they have the same overall and installation dimensions.

WE ALSO STOCK ALSGS POWER FEED PARTS, LIKE CARBON BRUSH, MOTORS ETC…, PLEASE CONTACT US FOR MORE INFORMATION.
