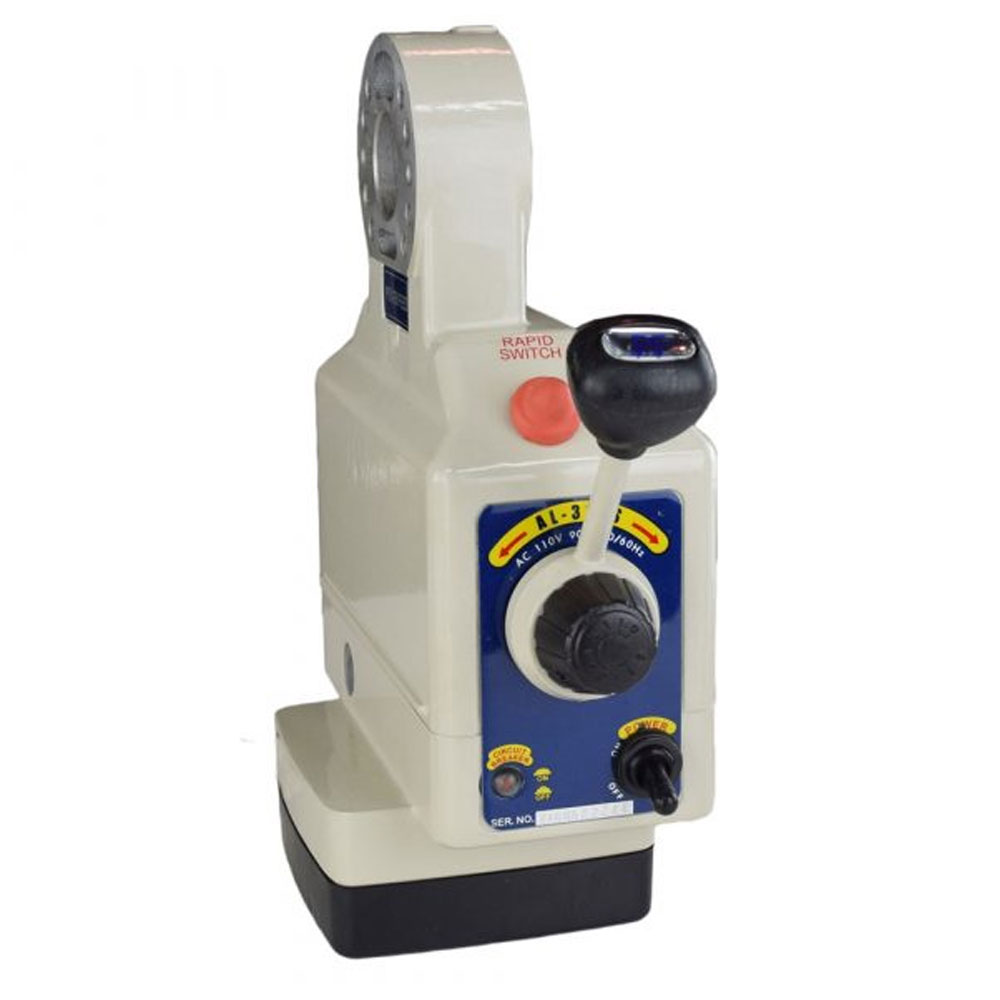

ALSGS Power Feed AL-310S Series Mill Power Peed

*Power Feed is a very good add-on for milling machines to improve our machining efficiency, hence we stock the very good brand ALSGS power feed for our customers’ choice.*

• ALSGS AL-310SX power feed is installed on the X-AXIS of the milling machines while AL-310SY is installed on Y-AXIS.
• Max Torque – 450in-ib
• Fits most Knee Type Milling machines, Including Bridgeport-type milling machines and some other variations.
• Variable Speed Control for Speed Adjustment On The Fly
• Rapid Traverse Button
• Includes Table Stops With Switch For Safety

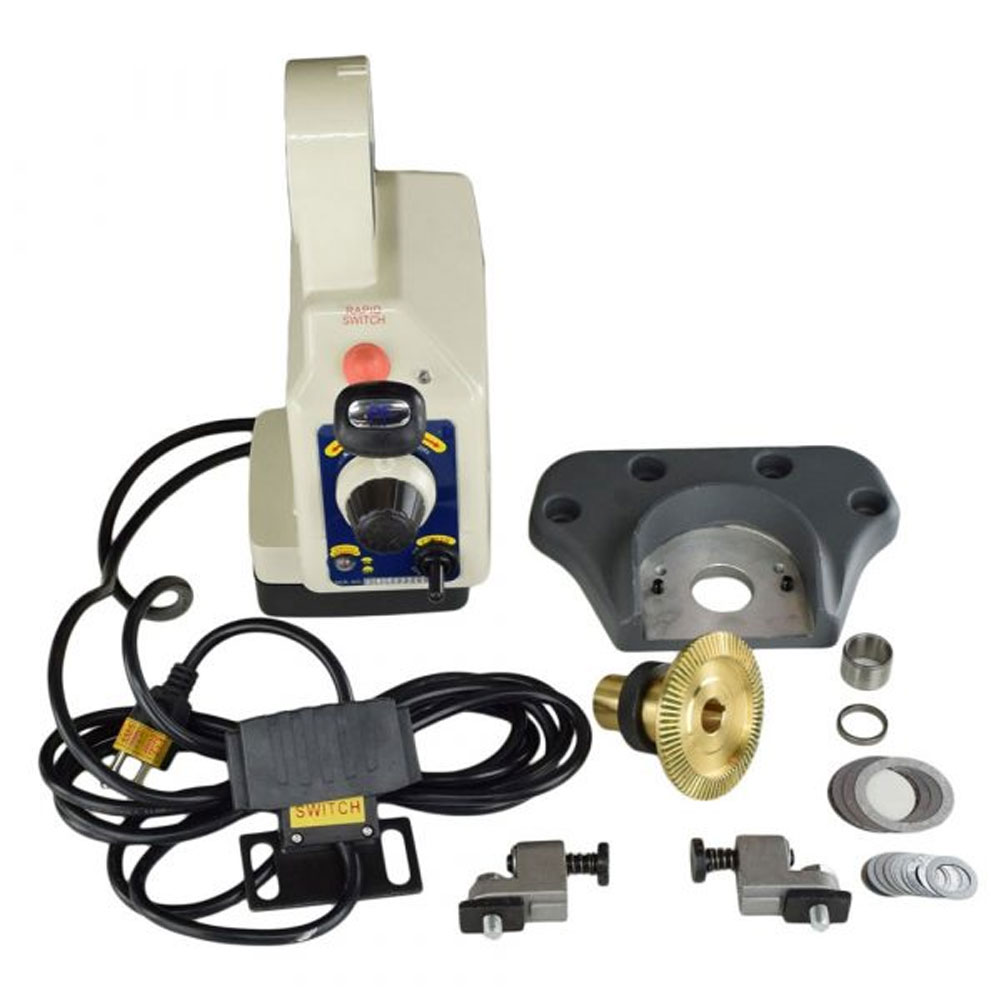

• Includes Everything Needed to Mount on Machines
• One-Year Warranty

Mill Power Feed By ALSGS, AL-310SX is installed on the X-AXIS of the milling machines while AL-310SY is installed on Y-AXIS.

ALSGS mill power feed beats ALIGN power feed on price, we have sold the two brands to our customers, they both enjoy a good reputation.

Voltage – 110V by default , 220V-240V optional.
Power Cord – US cord; UK, EU, optional. We ship the correct cord according to your ship-to-country.
Max Torque – 450in-ib
Weight – 7.20 KGS

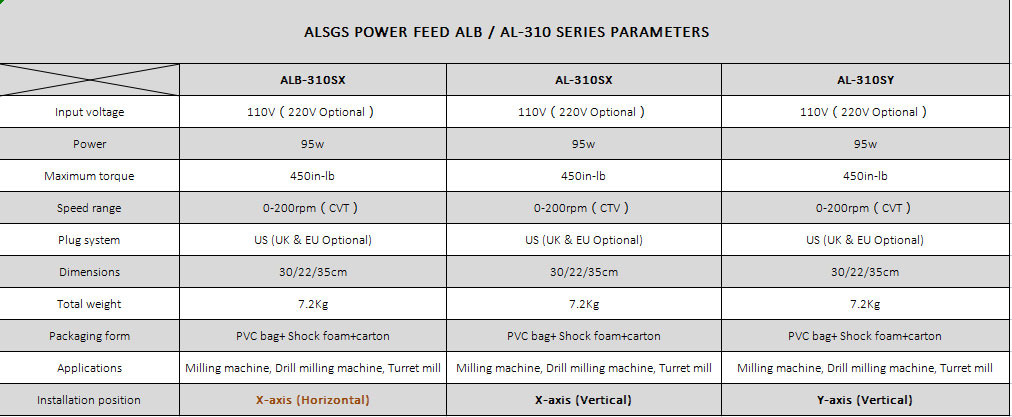

The differences between ALB-310SX、AL-310SX、AL-310SY?

The difference between AL-310S、AL-410S、AL-510S？
The number in the model represents the power, 310 is the smallest, 410 is slightly larger and 510 is the largest.

The difference between ALB-310SX、AL-310SX、AL-310SY？
The last letter of the model represents the different axes installed on the machine, the ALB is a horizontal type, it is suitable for most of the milling&drilling machines e.g. RongFu mill. While AL-310SX, AL-310SY are vertical types.

Are the installation dimensions of AL-310SX, AL-410SX, and AL-510SX the same?
Yes, they have the same overall and installation dimensions.

WE ALSO STOCK ALSGS POWER FEED PARTS, LIKE CARBON BRUSH, MOTORS ETC…, PLEASE SAY HELLO TO US.
